I have always been interested in prototypes and one-off tanks, so the idea of tanks with alternative turrets really appeals to me. Takom and Dragon have kits that use the AMX 13 turret and hull to create these vehicles:

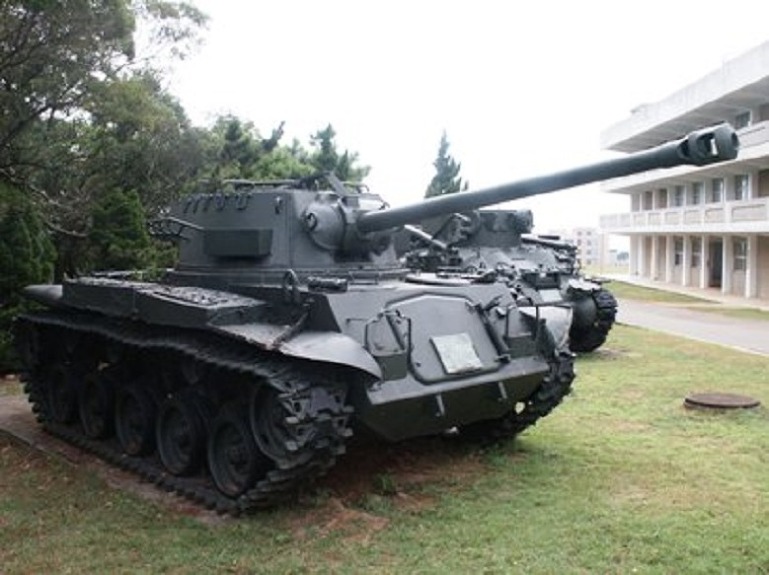

AMX 13 hull & chaffee turret,
M4a4 Sherman & AMX 13 turret
and then I ran across this Frankentank while researching the AMX hull w/Chaffee turret:
I thought of the idea for this thread a little while ago when Henri-Pierre posted a photo of an M48 turret on a Merkava I hull that I had never heard of. There seem to be quite a few of these test vehicles (well, mostly test vehicles...) so Please, post any photos you might have, or come across here.
#431
Florida, United States
Joined: February 20, 2014
KitMaker: 376 posts
Armorama: 311 posts
Posted: Saturday, August 19, 2017 - 07:56 PM UTC
Here are Amphibs that fall into the one-off/unique hulls with different turrets.
LVTEX (LVTP7 predecessor) with M551 turret and 105mm gun. I’m slowly making progress on one of these in 1/72.
AAVP7A1 with Elbit remote 30mm weapons station.
Slow is smooth and smooth is fast
Charlie on time!
Wien, Austria
Joined: March 09, 2016
KitMaker: 2,408 posts
Armorama: 2,300 posts
Posted: Saturday, August 19, 2017 - 08:28 PM UTC
Massachusetts, United States
Joined: March 28, 2007
KitMaker: 1,169 posts
Armorama: 1,067 posts
Posted: Sunday, August 20, 2017 - 01:09 AM UTC
Wow David, I had not seen that one, do you have any more references on that particular vehicle?
Here is another LVT, which ties in with my first post with another use of the Chaffee turret:
Here are the photos of the Patton turret on a Merkava that I spoke of earlier:
Your'e right Israel, those don't really count because they aren't tanks, boy those must be sooo top heavy! I drive a truck as part of my job, and I'm glad I don't have to drive one of those around, especially with someone shooting at me!
Rhone, France
Joined: December 02, 2002
KitMaker: 12,719 posts
Armorama: 12,507 posts
Posted: Sunday, August 20, 2017 - 01:22 AM UTC
"Find the Bastards, then Pile On"
Col. George W.Patton III 's standing order for the troopers of the 11th Armoured Cavalry Regiment
Massachusetts, United States
Joined: March 28, 2007
KitMaker: 1,169 posts
Armorama: 1,067 posts
Posted: Sunday, August 20, 2017 - 01:28 AM UTC
Here's an example of a tank with a prototype gun change:
A KV-2 with a ZiS-6 107mm gun:
RobinNilsson
TOS ModeratorStockholm, Sweden
Joined: November 29, 2006
KitMaker: 6,693 posts
Armorama: 5,562 posts
Posted: Sunday, August 20, 2017 - 01:39 AM UTC
In memory of Al Superczynski:
"Build what YOU want, the way YOU want to....
and the critics will flame you every time"
Rhone, France
Joined: December 02, 2002
KitMaker: 12,719 posts
Armorama: 12,507 posts
Posted: Sunday, August 20, 2017 - 01:42 AM UTC
PS : Hi Robin. The T-34 with a huge gun in your post is a fake indeed...
Here's the one it's based on :
From Iraq :
OT-62 + Cascavel turret :
Sheridan + 76mm gun :
or a 105mm :
or a Stingray turret :
M41 + Sheridan turret :
Uruguayan M41 with a 90mm gun :
H.P.
"Find the Bastards, then Pile On"
Col. George W.Patton III 's standing order for the troopers of the 11th Armoured Cavalry Regiment
Burgos, Spain / España
Joined: September 08, 2005
KitMaker: 117 posts
Armorama: 74 posts
Posted: Sunday, August 20, 2017 - 02:03 AM UTC
#431
Florida, United States
Joined: February 20, 2014
KitMaker: 376 posts
Armorama: 311 posts
Posted: Sunday, August 20, 2017 - 02:04 AM UTC
Quoted Text
Wow David, I had not seen that one, do you have any more references on that particular vehicle?
Here is another LVT, which ties in with my first post with another use of the Chaffee turret:
Info and images are hard to come by for the LVTEX. I have picture or two I took without it’s turret running up and down the beach from when it was still at AVTB. Other than that I may have one or two more pics in the collection somewhere, I included the only other that was easy/at hand.
Another one off was the LVTAAX-1. An LVTP5 hull with and M42 anti-aircraft turret.
Slow is smooth and smooth is fast
Charlie on time!
Massachusetts, United States
Joined: March 28, 2007
KitMaker: 1,169 posts
Armorama: 1,067 posts
Posted: Sunday, August 20, 2017 - 02:15 AM UTC
Holy cow, I did not expect such a flood of responses, I keep trying to respond, but you guys keep pouring in the photos, I can't keep up LOL! Thanks guys, keep em coming!
Is that Sheridan 76mm gun the same as used on the Walker Bulldog Frenchie?
Removed by original poster on 05/13/19 - 22:08:13 (GMT).
Rhone, France
Joined: December 02, 2002
KitMaker: 12,719 posts
Armorama: 12,507 posts
Posted: Sunday, August 20, 2017 - 02:29 AM UTC
Quoted Text
Is that Sheridan 76mm gun the same as used on the Walker Bulldog Frenchie?
I guess so...But I'm no expert
AFAIK, the T-55/Hellcat hybrid was the only one of its kind.
LVTP7 with a laser gun (!) :
H.P.
"Find the Bastards, then Pile On"
Col. George W.Patton III 's standing order for the troopers of the 11th Armoured Cavalry Regiment
Massachusetts, United States
Joined: March 28, 2007
KitMaker: 1,169 posts
Armorama: 1,067 posts
Posted: Sunday, August 20, 2017 - 02:29 AM UTC
Alvaro, that is right up my alley! Thanks again to everyone!
European Union
Joined: January 28, 2015
KitMaker: 2,099 posts
Armorama: 1,920 posts
Posted: Sunday, August 20, 2017 - 04:32 AM UTC
An M48 with the Starship turret
Never gonna' give EU up, never gonna' let EU down.
tatbaqui
News Writer #040
Metro Manila, Philippines
Joined: May 06, 2007
KitMaker: 2,713 posts
Armorama: 2,451 posts
Posted: Sunday, August 20, 2017 - 04:37 AM UTC
Hmmm those Stuarts look like manageable conversions for me...
European Union
Joined: January 28, 2015
KitMaker: 2,099 posts
Armorama: 1,920 posts
Posted: Sunday, August 20, 2017 - 04:40 AM UTC
Quoted Text
Hmmm those Stuarts look like manageable conversions for me...
Ding Hao already did some reboxes of the AFV club kits with parts to make said conversion.
Never gonna' give EU up, never gonna' let EU down.
Washington, United States
Joined: February 04, 2006
KitMaker: 302 posts
Armorama: 300 posts
Posted: Sunday, August 20, 2017 - 06:29 AM UTC
I am surprised no one posted this one
To bad this never made production in WW II.
tatbaqui
News Writer #040
Metro Manila, Philippines
Joined: May 06, 2007
KitMaker: 2,713 posts
Armorama: 2,451 posts
Posted: Sunday, August 20, 2017 - 07:03 AM UTC
Quoted Text
Quoted Text
Hmmm those Stuarts look like manageable conversions for me...
Ding Hao already did some reboxes of the AFV club kits with parts to make said conversion.
Thanks. These will be a good backup in case I get stuck on my own conversion
tatbaqui
News Writer #040
Metro Manila, Philippines
Joined: May 06, 2007
KitMaker: 2,713 posts
Armorama: 2,451 posts
Posted: Sunday, August 20, 2017 - 07:09 AM UTC
Quoted Text
Don't tell Dragon about this one ...
I recall Hobby Boss has kitted this some years back.
Vermont, United States
Joined: July 21, 2002
KitMaker: 3,569 posts
Armorama: 2,070 posts
Posted: Sunday, August 20, 2017 - 07:42 AM UTC
Then there is the 'Sanguine' system on the ZSU 23/4 chassis.
Does this count?
If you can keep your head when all about you are losing theirs,
perhaps you've misunderstood the situation.
Auckland, New Zealand
Joined: February 03, 2014
KitMaker: 1,042 posts
Armorama: 871 posts
Posted: Sunday, August 20, 2017 - 09:31 AM UTC
tatbaqui
News Writer #040
Metro Manila, Philippines
Joined: May 06, 2007
KitMaker: 2,713 posts
Armorama: 2,451 posts
Posted: Sunday, August 20, 2017 - 09:45 AM UTC
Quoted Text
Holy cow, I did not expect such a flood of responses, I keep trying to respond, but you guys keep pouring in the photos, I can't keep up LOL! Thanks guys, keep em coming!
Is that Sheridan 76mm gun the same as used on the Walker Bulldog Frenchie?
Indeed such nice pics. Your thread seems a candidate for a campaign
Florida, United States
Joined: October 21, 2013
KitMaker: 751 posts
Armorama: 751 posts
Posted: Sunday, August 20, 2017 - 12:25 PM UTC
Quoted Text
Quoted Text
Don't tell Dragon about this one ...
I recall Hobby Boss has kitted this some years back.
They did!!!
#490
Sofiya, Bulgaria
Joined: September 22, 2016
KitMaker: 1,432 posts
Armorama: 1,390 posts
Posted: Sunday, August 20, 2017 - 01:10 PM UTC
Maybe not exactly fitting to this thread, but:
This is a Pz.Kpfw IV Ausf.G late with a Soviet Zis-3 gun mounted instead of the original gun.
The conversion was done in the late 40's/early 50's and the "hybrid" was used as a static AT pilbox in "Krali Marko" defense line on the southern border of Bulgaria during the Cold War.
Today it is on display at Yambol's Museum of Battle Glory.
